Compact sorting of optical vortices by means of diffractive transformation optics

Significance Statement

Light beams carrying orbital angular momentum have known a wide range of applicability, including phase contrast microscopy, particle tweezing and trapping, stimulated emission depletion microscopy, coronagraphy and telecommunications among others. In particular, orbital angular momentum of light has recently attracted a growing interest as a novel degree of freedom in order to enhance the information capacity of current optical networks, both for optical fiber transmission purposes and free-space communication. Such applicability is attainable since the potentially unbounded state space is advantageous for increasing the amount of information that can be encoded onto a single photon, which leads to enhanced spectral efficiency and information capacity. Nevertheless, the exploitation of orbital angular momentum mode-division multiplexing still presents several key issues and requires further optimization and tests mainly in the optical and infrared range before it can be applied commercially. In particular, crucial parts of an optical link are represented by the  multiplexer and the demultiplexer, that is by the optical techniques exploited to prepare a collimated superposition of modes at the transmitter and to separate them at the receiver, respectively.

In a recent paper published in Optics Letters, Gianluca Ruffato and colleagues at University of Padova in Italy reported an efficient fully optical configuration for the demultiplexing of the orbital angular momentum modes based on the already known log-pol optical transformation. They aimed at designing an optical solution that could combine the basic demultiplexing functions on a single miniaturized diffractive mask.

The researchers employed that demultiplexing technique for the orbital angular momentum sorting of perfect vortices. An optical layout was prepared which basically consists of a sequence of two optical elements: the phase corrector and the unwrapper. The two optical components were integrated into a single diffractive optical element in order to improve the miniaturization level and simplify alignment operations.

The research team noted that for efficient excitation and stable propagation of orbital angular momentum modes along either commercial or special ring fibers it was necessary to manipulate and excite annular intensity distributions with predetermined radius and width, irrespective of their orbital angular momentum content. They found that perfect vortices were best placed to excite optical vortices whose ring dimensions could be adjusted and controlled independently of the orbital angular momentum value. Since those beams present a narrow doughnut intensity distribution, the central region of the illuminated optical element is left unexploited. This led to the integration of the second element designed for phase correction in the non-illuminated central region. The optical device was realized in a diffractive form of a modulo-2π relief. This realization was noted to avoid bulky refractive elements and to provide a higher miniaturization level, mainly when short focal lengths were required.

The work presented here shows the realization of an efficient fully optical configuration for the demultiplexing of orbital angular momentum modes based on a log-pol optical transformation. The exploitation of perfect vortices is advantageous since it enables the control of both radius and width of the generated ring-shaped beam and also makes it independent of its orbital angular momentum value. However, the same setup can work with common high-order beams, provided the inner zone is not illuminated at the first incidence. The integration into a single optical element improves the miniaturization level and simplifies the alignment operations. The inner zone can be made reflective, thus maintaining the original direction of the input beam without the need of a beam-splitter.  The presented optical elements are promising for adaption into optical platforms and processing of orbital angular momentum channels in either optical fiber transmission or in free space.

The nanofabrication steps were performed by Dr Michele Massari with the 100-KeV electron-beam lithography facility in use at the Laboratory for fabrication of Nanodevices (LaNN), under the direction of prof. Filippo Romanato. The laboratory provides a nanofabrication center devoted to research and technology transfer to the industrial level, with applications in the telecom field, microscopy, biosensing, optoelectronics and photonics.

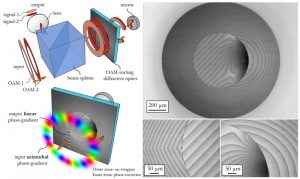

Compact Sorting of Optical Vortices by Means of Diffractive Transformation Optics - advances in engineering

About the author

Gianluca Ruffato is a Post-doc researcher at the Department of Physics and Astronomy “G. Galilei” of the University of Padova. He received his BS and MS degrees in physics from the University of Padova in 2006 and 2008, respectively. He received his PhD degree from the University of Padova in 2012. From 2012 to 2014 he worked as a researcher at the Laboratory for Nanofabrication of Nanodevices (LaNN ) in Padova, with a research project dealing with the design and test of plasmonic devices for sensing applications.

His current research interests include orbital angular momentum (OAM) of light and structured light beams for applications in several fields: mode-division multiplexing in the visible and near-infrared range both for free-space and optical fibers propagation, phase-contrast microscopy, diffractive optics design and test, computer-generated holograms for anti-counterfeiting applications.

About the author

Michele Massari is a Post-doc researcher at the Department of Physics and Astronomy “G. Galilei” of the University of Padova. He received his Master’s Degree in Physics from the University of Padova in 1996. In 2007 he was awarded the L2 Master’s Degree in Nanotechnologies by the Ca’ Foscari University of Venice. He received his PhD degree in Materials Science and Engineering from the University of Padova in 2012, under the supervision of prof. Filippo Romanato. From 2007 to 2008 he worked as a researcher for Media Lario Technologies s.r.l., a company leader in the fabrication of advanced optical components for the industry, on the synthesis and characterization of thin films. From 2012 he has been working as a researcher at the Laboratory for Nanofabrication of Nanodevices (LaNN) in Padova, in the capacity of manager of the Electron Beam Lithography (EBL) system. His current research interests include, in particular, the 3D fabrication by e-beam lithography of innovative diffractive and refractive optics based on the Orbital Angular Momentum (OAM) of light, for microscopy, astronomy, anti-counterfeiting and telecom applications.

About the author

Filippo Romanato is Associate Professor of Physics at Padua University (Material Science). Since June 1998 he is operative responsible of X-ray lithography and and co-founder of the micro and nano fabrication group of IOM National Laboratory of CNR at Elettra Syncrotron in Trieste (Italy) where nowadays the lithography facility is constituted of 4 clean room and of a complete set of nanofabrication tools. He was appointed as director of Laboratory for Nanofabrication and Nanodevices (LaNN) (2008-2017). He was visitor scientist at MIT (1996), senior scientist at ESRF synchrotron (1997-1998), and Associate Professor at School of Material Engineering of NTU (Nanyang Technological University) of Singapore (2005-2009). Coordinator and Principal Investigator of several national and international projects for a total of 11Meuro. In particular, he was unit-responsible in a FP7 project, and national projects.

He is co-founder of three spin-off related to nanofabrication and telecom. He is responsible for several project devoted to the development of device for nanolithography and nano-optics. He is currently co-author of 9 issued patents, 2 pending patents and of 198 scientific peer-reviewed papers.


Gianluca Ruffato1,2, Michele Massari1,2, Filippo Romanato1,2,3. Compact Sorting of Optical Vortices by Means of Diffractive Transformation Optics. Optics Letters Volume 42 (2017) No. 3

Show Affiliations
  1. Department of Physics and Astronomy “G. Galilei,” University of Padova, via Marzolo 8, 35131 Padova, Italy
  2. Laboratory for Nanofabrication of Nanodevices, Stati Uniti 4, 35127 Padova, Italy
  3. CNR-INFM TASC IOM National Laboratory, S. S. 14 Km 163.5, 34012 Basovizza, Trieste, Italy
