Enhanced shock performance by disperse porous structure: PZT95/5 ferroelectric ceramics


Porous ceramics have attracted the attention of researchers and scientists in the past few years. It has been widely used in engineering field such as gas filtration, insulation, and catalysts among others. However, more applications of porous ceramics are being uncovered today due to advancement in technology. These applications depend on the physical properties of the materials which are determined by the structural features. The work, therefore, focused on investigating how the properties of ceramics are affected by the distribution of pores in their structures, with an objective of improving shock performance of the PZT95 ferroelectric ceramic.

Dr. Hengchang Nie, and Professor Xianlin Dong at Shanghai Institute of Ceramics in collaboration with Dr. Yin Yu, and Professor Hongliang He at Institute of Fluid Physics in China used PZT95/5 ferroelectric ceramics to examine the effect of the distribution of pores on ceramics properties. They wanted to determine the influence of the pores distribution on shock compression. Their research work is now published in Journal of the American Ceramic Society.

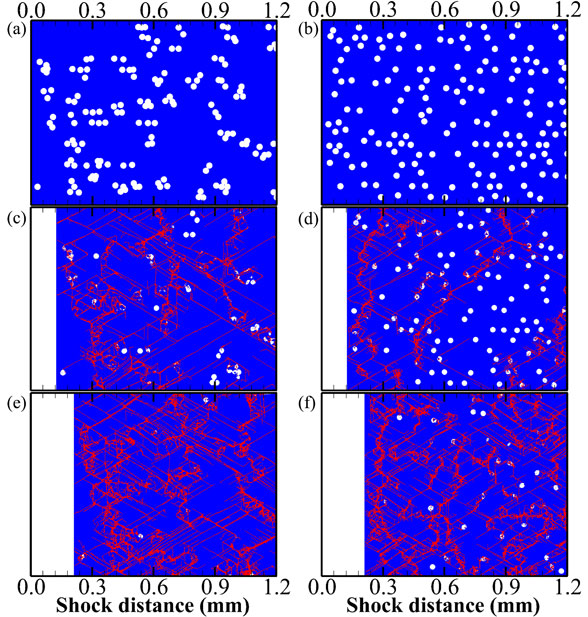

From the experiments conducted by the research team, it was established that porous ceramics with disperse pores work better than those whose structures have agglomerated voids. They realized from simulations that the shock resistance and plasticity of the porous PZT95/5 ferroelectric ceramic were the significant contribution to its shock performance. The macroscopic response of the experimental results and the simulation results of mesoscopic features together showed the accuracy of the experiments and the research at large.

The research successfully found how the pores distribution affecting shock performance in porous PZT95/5 ferroelectric ceramics. The authors have also demonstrated how the structures of the ceramic materials especially disperse and agglomerated voids affect their physical properties. From the comparison between disperse and agglomerated pores, they concluded that distribution of pores significantly influenced the physical properties of the ceramics. On the other hand, simulations results showed that under shock pressures, mechanical failures can result in electrical failures in the ceramic materials.

Hengchang Nie and colleagues also observed that disperse pores has added advantage as compared to agglomerate pores as far as yielding strength is concerned. They also have significantly high Hugoniot elastic limit (HEL). Both porosity and pore distribution were considered the significant factors affecting the Hugoniot elastic limit. The study is critical in the field of ceramic materials. It has enabled an in-depth understanding of the contribution of the pores and other factors in determining the performance of the materials. These results will, therefore, contribute profoundly to the development of advanced porous materials for various applications in the field of engineering.

Enhanced shock performance by disperse porous structure: A case study in PZT95/5 ferroelectric ceramics. Advances in Engineering

About the author

Dr. Hengchang Nie, currently an Associate Prof. at Shanghai Institute of Ceramics, Chinese Academy of Sciences (SICCAS), a Member of Youth Innovation Promotion Association, Chinese Academy of Science. He received his PhD in Materials Physics and Chemistry from SICCAS in 2011.

His research interest includes the fabrication, microstructure tailoring, field-induced phase transition behavior of ferroelectric ceramics and applications in energy storage and conversion.

About the author

Prof. Xianlin Dong, currently Vice President of SICCAS, Director of the research center for Inorganic Functional Materials and Devices. He received his PhD in Material Sciences from SICCAS in 1992 and worked in University of Tsukuba as a JSPS fellow in 1996.

Prof. Dong focus on the R&D of ferroelectric, piezoelectric, pyroelectric, dielectric ceramics and thin films, as well as multiferroic materials. Author of more than 300 publications and over 50 licensed patents.


Nie, H., Yu, Y., Liu, Y., He, H., Wang, G., & Dong, X. (2017). Enhanced shock performance by disperse porous structure: A case study in PZT95/5 ferroelectric ceramics. Journal of The American Ceramic Society100(12), 5693-5699.
