Mechanical property and thermal damage factor of limestone at high temperature

Significance

The mechanical properties of rocks are highly sensitive to changes in temperatures. The extent of high-temperature effects varies depending on the types of rocks, their diversity and physical properties. However, a consistent and convincing explanation of the high-temperature effect is still lacking. The recent introduction of a thermal damage factor has attracted significant attention of researchers as a promising tool for predicting the high-temperature effect on the mechanical properties of rocks.

Recently, Jian Yang (graduate student) and Zhiwei Wang (PhD student), cooperator Dr. Weiqiang Zhang and led by Professor Li-Yun Fu from China University of Petroleum (East China) presented a comprehensive investigation of the thermal damage factor of limestone rock. The main focus areas included the effective porosity and peak compressive strength. The work is currently published in the journal, International Journal of Rock Mechanics and Mining Sciences.

Being a sedimentary rock, limestone is distributed over a variety of sources that probably have different chemical compositions and physical microstructures. Up to now, most studies on limestone contributes to their thermal effects on their physical and mechanical properties with limited studies on thermal damage factor at high temperatures. Briefly, the authors commenced their research work by collecting ten groups of limestone rock samples. Next, an experiment was conducted to investigate the high-temperature effect on the limestone rock samples at ten different temperatures for each sample.

The thermal damage factors were determined by correlating the P-wave velocities with the changes in the effective solid matrix and the peak compressive strength provided in the experimental data. The variations in the mechanical properties of the limestone i.e. P-wave velocity, effective solid matrix, and peak compressive strength were used to investigate the thermal damage mechanism.

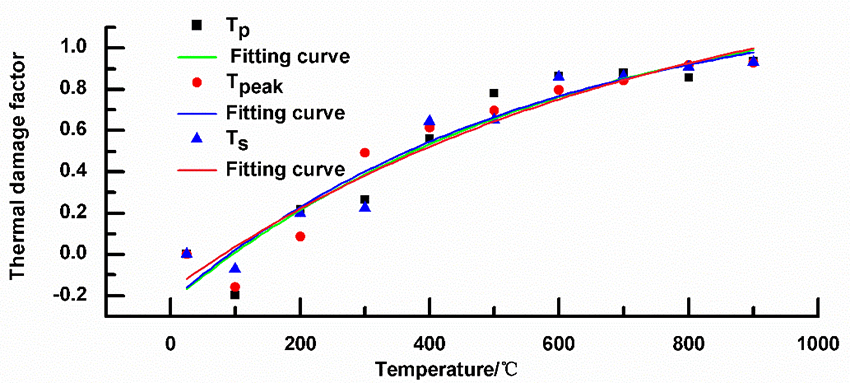

The authors observed that unlike the rate of change in the P-wave velocity, peak compressive strength and rate of change in the effective solid matrix were better parameters for expressing thermal damage factor. This was well captured in the cross-plot of P-wave velocities with peak compressive strength and effective solid matrices at different temperatures. Additionally, the high-temperature effect on the elastic modulus of limestone followed a quadratic thermoelastic prediction. For example, a fitting correlation coefficient of up to 0.98 was obtained compared to that in the experimental data. The thermal damage factor could be reduced by ignoring the effects of Poisson’s ratio and densities that helped in simplifying the P-wave velocity ratios before and after high-temperature treatments. All the limestone properties exhibited a similar exponential trend with temperature increase and correlation coefficients.

In summary, the study provided insights into the characteristics of thermal damage factors about the mechanical properties of limestones exposed to high temperatures. Considering the influence of high temperature on the mechanical properties of limestone and rocks in general, it was noted that an increase in temperature may result in the gradual accumulation of the thermal damage factor. This knowledge will be useful in high-temperature rock mechanics that is a key area in numerous engineering applications.

Mechanical property and thermal damage factor of limestone at high temperature - Advances in Engineering Mechanical property and thermal damage factor of limestone at high temperature - Advances in Engineering

About the author

Jian Yang received the BS (2017) in Geophysics from Institute of Disaster Prevention, Hebei, China. Since 2017, he is a master degree candidate in Geological Engineering from Institute of Geochemistry, Chinese Academy of Sciences, Guiyang, China. He is mainly engaged in research on rock physics and thermoelasticity problem.

E-mail: [email protected]

About the author

Li-Yun Fu received the BS (1985) in Geophysics from Chengdu College of Geology, Chengdu, China, and the MS (1992) and PhD (1995) in Geophysics at China University of Petroleum, Beijing, China. From 1995 to 1997, Li-Yun Fu was a postdoctoral fellow in engineering mechanics, Tsinghua University, Beijing, China. In 1997, Li-Yun Fu moved to Institute of Tectonics, University of California, Santa Cruz as a researcher. In 1999, Li-Yun Fu joined Australia CSIRO as a scientist staff. In 2004, Li-Yun Fu joined Institute of Geology and Geophysics, Chinese Academy of Sciences. In 2017, Li-Yun Fu joined School of Geosciences, China University of Petroleum (East China), meanwhile as a guest professor at Institute of Geology and Geophysics, Chinese Academy of Sciences. Li-Yun Fu is a member of SEG, EAGE, AGU, and SSA.

He has published more than 120 papers in academic journals (SCI), and obtained more than 20 national invention patents. His research interests include regional seismic facies and wave propagation, rugged surface statistics and response characteristics, strong ground motions, 3D seismic observation, seismic modeling and complex structure imaging, generalized nonlinear seismic inversion, risk assessment of reservoir prediction, and high-PT rock physics.

E-mail: [email protected]

About the author

Weiqiang Zhang received the PhD (2017) in Geological Resources and Geological Engineering from China University of Mining and Technology (CUMT), Wuhan, China. Since 2017, he is a lecturer in CUMT. He is mainly engaged in research on thermal damage of rock and engineering geology.

E-mail: [email protected]

About the author

Zhiwei Wang received the BS (2014) in Geophysics from China University of Geosciences, Wuhan, China. He is studying for a doctor’ s degree in Geophysics from Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing, China. His research focus on rock physics and thermoelasticity problem.

E-mail: [email protected]

Reference

Yang, J., Fu, L., Zhang, W., & Wang, Z. (2019). Mechanical property and thermal damage factor of limestone at high temperature. International Journal of Rock Mechanics and Mining Sciences, 117, 11-19.
