Self-organized 2D Ni particles deposited on titanium oxynitride-coated Si sculpted by a low energy ion beam

Journal of Physics D: Applied Physics Volume 47 Number 19, 2014.

M Morales¹, R B Merlo¹, R Droppa² and F Alvarez¹

¹ UNICAMP, Instituto de Física ‘Gleb Wataghin’ 13081-970 Campinas, SP, Brazil
² Universidade Federal do ABC, Centro de Ciências Naturais e Humanas, 09.210-170, Santo André, Brazil



Abstract

Self-ordered Ni nanoparticles grown on TiN_xO_y-coated crystalline silicon previously sculpted by ion beam bombardment are reported. The samples are obtained following a sequential in situ routine deposition procedure. First, crystalline Si is Xe⁺bombarded, generating regular patterns. Second, a thin TiN_xO_y film is grown on the patterned Si substrate. Immediately, nano-sized nickel particles are deposited by ion beam sputtering and temperature-annealed forming a 2D lattice. The self-organized Ni islands are induced by preferential Ni site nucleation on the coated sculpted Si grooves.



Go To Journal



Figure Legend

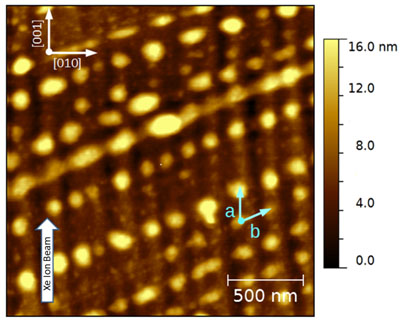

Topographic AFM general view of the 2D nickel particle lattice. The projection of the ion beam direction is indicated. The vectors a and b define the basis of the 2D lattice and the most important crystalline silicon orientations are indicated.
